Jewelry soldering machine MINI Laser Jewelry soldering with Digital screen
Machine specification
| Model | Magic Box |
| Laser Type | 1064nm YAG Laser |
| Beam Diameter | 0.2-2.0mm |
| Pulse Width | 0.1-10ms |
| Frequency | 1.0~10.0Hz Continuously Adjustable |
| Maximum Laser Pulse Energy | 40J |
| Host Power Consumption | ≤1.5KW |
| Cooling System | Convective air cooling |
| Pump Source | Xenon lamp |
| Aiming and Positioning | Microscope + HD digital CCD camera system |
| Operating Mode | Touch Control |
| Display Touch Screen | 10X high quality colorful Digital CCD |
| Operating Language | English, Chinese |
| Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ |
| Machine Dimension | Ø295mm x H282mm |
| Wooden Package Dimension | 40x45x48CM |
| Machine Net Weight | 13.5KG |
| Operating Environmental Temperature | ≤45℃ |
| Humidity | < 90% non-condensing |
| Application | Welding and repairing all kinds of jewelry and metal parts |
Main features of the machine
1. Compared with ordinary laser spot welding machines, Magic Box has a fast boot time, and it only takes 2-5 seconds to enter the working state, which improves work efficiency and improves customer experience.
2. Magic Box adopts air-cooled cooling method, built-in condensate, easy to start, no need to connect other equipment, no need to add cooling water, and it can be used after power on.
3. The operation interface is simple, enter the boot interface to change the required parameters, such as energy percentage, pulse frequency, light spot
4. The weight is only 13.5KG. Currently the smallest and lightest spot welder in the world, you can easily carry it to various shopping malls for custom repair work for your customers. Transportation and storage costs are thus greatly reduced.
This machine is equipped with a digital screen. Different from the previous spot welding machines, the magic box will not flash the screen when it emits light, which makes the operator's eyes feel more comfortable and can observe more carefully.
3. It is small in size and has a working energy of 40J, which can easily cope with welding work in various industries.

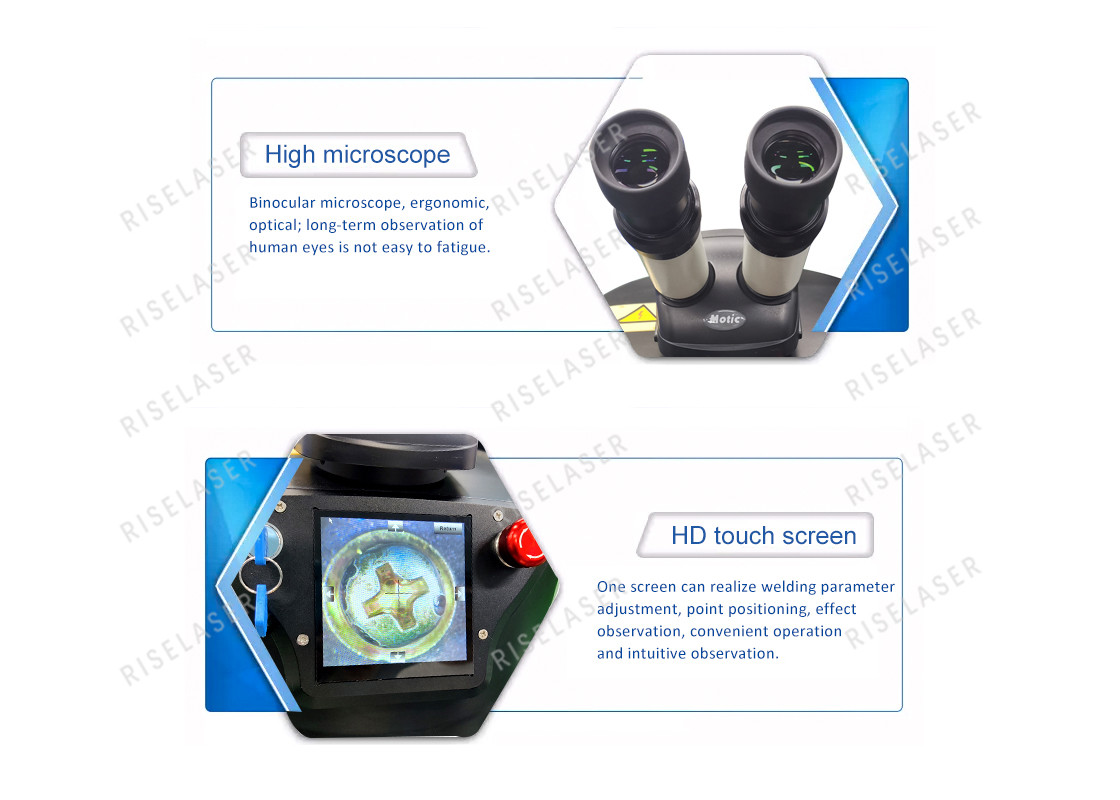

4. The machine is equipped with a high-definition 10 times magnification microscope for professional welding operators
5. Easy to use for both novice and mature operators

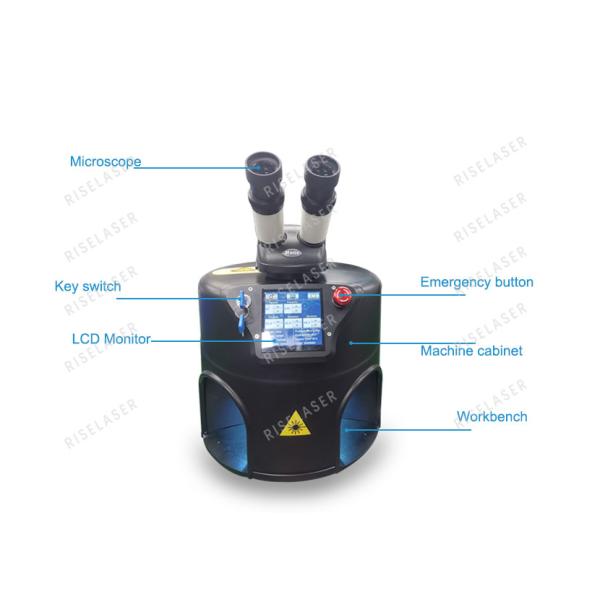

Machine characteristics

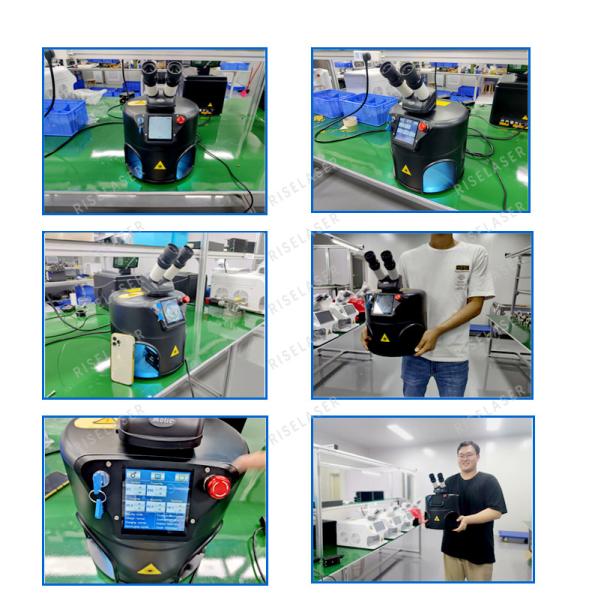

Pictures from more degree
Magic box compare with a mobile phone
Machine dimension
Application
Jewelry laser welder widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.
More display
Machine operation display
